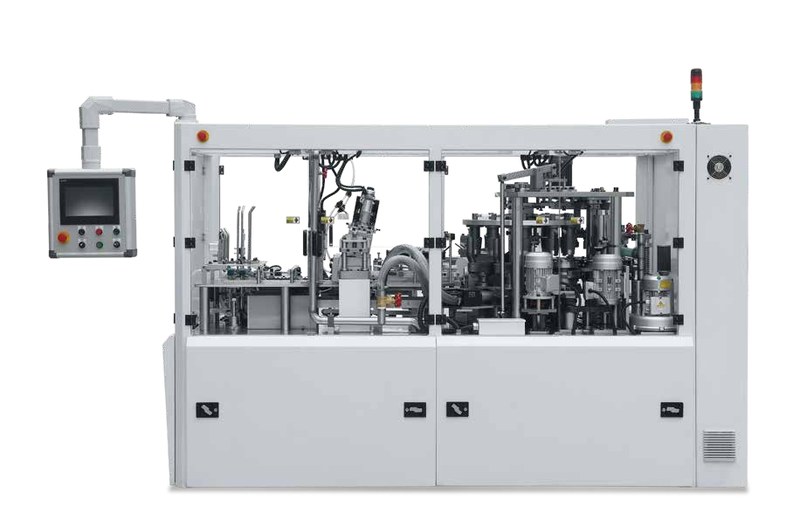

LM-C4-160 High Speed Paper Cup Making Machine
LM-C4-160 high speed paper cup making machine produces 2-16 oz disposable paper cups at 140-160 pcs/min for hot and cold drinks.
Quick Answer: What Is The LM-C4-160?
The LM-C4-160 is a high speed paper cup making machine that forms single and double PE coated paper cups at 140-160 pcs/min. It is powered by 380 V / 21 kW, needs 0.4 m³/min of compressed air, and ships in 30-35 working days. It is built for coffee chains, beverage brands and food service distributors.
The LM-C4-160 is a high speed intelligent paper cup making machine from Lee Machinery that forms 2-16 oz single and double PE coated paper cups at 140-160 pcs/min, designed for hot drink, cold drink and food container production.
Thanks to its open type double cam drive, continuous automatic spray lubrication and whole frame design, the machine keeps high-speed running stable with low vibration and a low failure rate, which makes it the flagship model for serious paper cup factories.
- Model: LM-C4-160 (Lee Machinery)
- Speed: 140-160 pcs/min
- Cup Sizes: 2-16 oz (hot & cold drink cups)
- Paper: 210-350 gsm, single or double PE coated
- Lead Time: 30~35 working days after payment received
- Support Language: English, French, Spanish, Portuguese, Arabic, etc.
What Is A High Speed Paper Cup Making Machine?
A high speed paper cup making machine is an automatic forming machine that turns pre-printed, die-cut paper blanks into finished paper cups in one continuous cycle: the blank is fed, the body is formed and side-sealed, a bottom disc is inserted and heat-sealed, the rim is curled, and finished pieces are counted and stacked.
Unlike semi-automatic equipment, which moves cups between stations by hand, a fully automatic machine such as the LM-C4-160 keeps every station in mechanical phase. That is why it can hold 140-160 pcs/min with a single operator, and why output stays consistent across long shifts for coffee chains, beverage brands and food service distributors.
Feature:
- Open type double cam drive – higher precision and stability than chain or belt drives at high speed
- Continuous automatic spray lubrication – reduces wear on moving parts and extends machine life
- Gear transmission – accurate synchronization between all forming stations
- Lester heater on the cup bottom – strong, reliable bottom sealing for hot drinks
- Whole frame design – low vibration at 160 pcs/min full speed
- Linear guide rail – precise cup transfer between stations
- Optional online inspection – automatic rejection of defective cups
- Optional paper blank feeder – automatic feeding of fan-shaped paper blanks

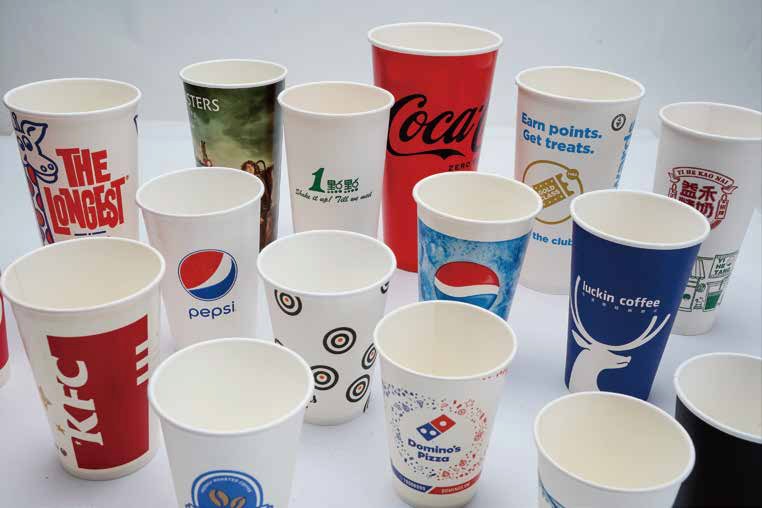

Application:
The LM-C4-160 is widely used by paper cup manufacturers producing disposable cups for:
- Hot drinks: coffee cups, tea cups, milk tea cups
- Cold drinks: juice cups, soft drink cups, water cups
- Food containers: ice cream cups, dessert cups, snack cups
Single wall, double wall and corrugated cup bodies can all be produced, covering the full 2-16 oz range requested by coffee chains, beverage brands and food service distributors.
Machine Parameters:
| Model | Main Parameter |
| Model | LM-C4-160 |

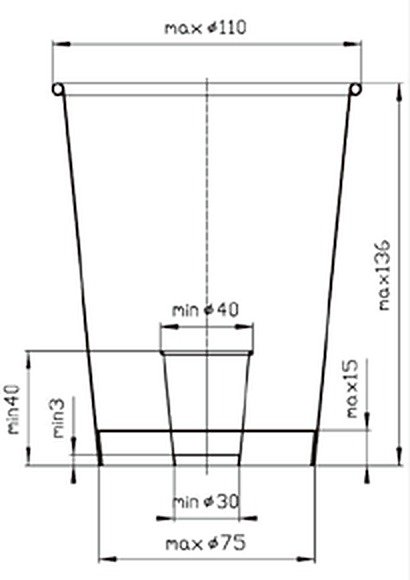

| Cup Size | 2-16 oz (top diameter up to 110 mm) |
| Production Speed | 140-160 pcs/min |
| Raw Paper | 210-350 gsm, single or double PE coated |
| Power Supply | 380 V / 21 kW, 50 Hz |
| Air Consumption | 0.4 m³/min |
| Net Weight | 5,300 kg |
| Dimension | L2750 × W1300 × H1800 mm |
How Does The LM-C4-160 Work?
The LM-C4-160 runs a continuous, fully automatic cycle. One operator loads material and monitors the panel; the stations below run in sequence:
- Blank feeding: Pre-printed, die-cut fan-shaped blanks are loaded into the magazine and fed one by one.
- Body forming: The blank wraps around the mandrel and the side seam is sealed with heat.
- Bottom insertion: A bottom disc is punched from the paper roll and placed into the body.
- Bottom sealing: The bottom heater bonds and knurls the base so the container is leak-proof.
- Rim curling: The top rim is rolled outward for a smooth drinking edge and a tight lid fit.
- Counting and stacking: Finished pieces are counted automatically and stacked into sleeves.
Main Machine Features:
- Open Type Double Cam Drive: the cam system controls every forming station with mechanical precision, which is why the machine can run at 160 pcs/min without the timing drift that slows chain-driven machines down.
- Continuous Automatic Spray Lubrication: lubrication is applied while the machine runs, so there is no daily manual oiling downtime and gear wear stays minimal over years of production.
- Whole Frame Design: the heavy one-piece frame absorbs vibration, protecting knurling and sealing quality at full speed.
- Lester Heater On The Bottom: stable bottom heating produces leak-free cup bottoms even with 350 gsm heavy paper.
- Linear Guide Rail Cup Transfer: cups travel on linear guide rails between stations, keeping alignment accurate and reducing jams.
- Gear Transmission: synchronized gear drive keeps side seam, bottom and knurling stations in perfect phase.
What Can The LM-C4-160 Produce?
| Cup Type | Typical Sizes | End Use |
| Espresso cup | 2-4 oz | Coffee shops, tasting portions |
| Coffee / tea cup | 7-9 oz | Hot drink chains, offices |
| Cold drink cup | 9-12 oz | Juice, soft drinks, events |
| Large cup | 12-16 oz | Milk tea, smoothies, takeaway |
Output Planning: What Can You Expect Per Shift?
Use these numbers to size the machine against your order book:
| Production Window | Running Time | Output At Rated Speed |
| Per hour | 60 min | 9,600 cups |
| Per 10-hour shift | 10 h | 96,000 cups |
| Per day (2 shifts) | 20 h | 192,000 cups |
| Per month (26 days, 2 shifts) | 520 h | 4,992,000 cups |
Figures are calculated at the rated top speed of 140-160 pcs/min and assume steady material supply and normal changeover time. Running smaller sizes or heavier board will sit at the lower end of the range.
Is The LM-C4-160 The Right Machine For Your Factory?
Choose the LM-C4-160 if:
- You need 140-160 pcs/min of steady output and want one machine to cover 2-16 oz.
- You supply coffee chains, beverage brands and food service distributors and need consistent, leak-proof quality on every batch.
- You want one high speed line instead of two medium speed machines, so floor space and labour stay at one machine.
- You plan to run two shifts and need the machine to hold tolerance over years, not weeks.
Consider a different model if:
- Your orders are still small and seasonal: a lower-output model keeps your capital cost down.
- You only need one fixed size today: a dedicated single-size machine is cheaper than a wide size window.
- Your main problem is defect rate rather than speed: add an inspection machine before buying more forming capacity.
Send us your container sizes, board specification and target output per month. Our engineers will size the right model and confirm the tooling before you order.
Related Lee Machinery Models
Other machines in the Lee Machinery paper container range:
| Model | Best For |
| LM-C4-120L | Large cup version, up to 110 mm top diameter and 180 mm high |
| LM-C3-110 | Medium speed cup machine, 2-16 oz at 90-110 pcs/min |
| LM-W4-140 | High speed cup outer wrap machine, 120-140 pcs/min |
| LM-Q3-240 | Online cup inspection at 240 pcs/min |
FAQs:
What is the production speed of the LM-C4-160 paper cup machine?
The LM-C4-160 runs at 140-160 pcs/min, which means a single machine can produce about 84,000-96,000 paper cups in a 10-hour shift.
What cup sizes and paper can the LM-C4-160 handle?
It produces 2-16 oz paper cups using 210-350 gsm single or double PE coated paper, covering espresso, coffee, cold drink and takeaway cup sizes.
What are the power and installation requirements of the LM-C4-160?
The machine needs a 380 V / 21 kW power supply, 0.4 m³/min of compressed air, and a floor space of L2750 x W1300 x H1800 mm with a net weight of 5,300 kg.
What is the lead time and how is the LM-C4-160 shipped?
Standard lead time is 30 to 35 working days after the deposit. The machine is packed in a fumigated export wooden case with moisture protection, shipped by sea as a full container or groupage, and delivered with a full spare parts kit, tooling set and English manuals.
Do you provide installation, training and after-sales service for the LM-C4-160?
Yes. Every machine is tested with your container size before shipment, and we provide installation guidance, operator training videos and remote commissioning support. Engineers can be dispatched for on-site commissioning, and wearing parts are stocked for long-term supply.
Can the LM-C4-160 be customised for special sizes, board or voltage?
Yes. The tooling set is made for your target size range, and the electrical system can be built for the local voltage and frequency of your country. Optional units such as online inspection, paper blank feeders and embossing can be added at the time of order.
