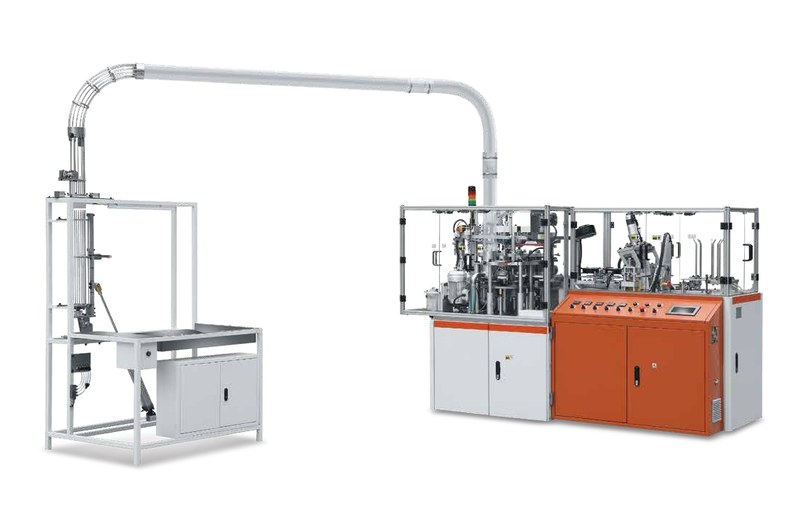

LM-C3-110 Medium Speed Paper Cup Forming Machine
LM-C3-110 medium speed paper cup forming machine: 2-16 oz, 90-110 pcs/min, 210-350 gsm, 20.6 kW, 3,500 kg.
Quick Answer: What Is The LM-C3-110?
The LM-C3-110 is a medium speed paper cup forming machine that forms single and double PE coated paper cups at 90-110 pcs/min. It is powered by 380 V / 20.6 kW, needs 0.4 m³/min of compressed air, and ships in 30-35 working days. It is built for coffee chains, beverage brands and food service distributors.
The LM-C3-110 is the medium speed paper cup forming machine of our range. It makes 2-16 oz cups at 90-110 pcs/min from 210-350 gsm single or double PE coated board, which is the classic specification for a factory entering the paper cup business.
It uses an integral cup mould, a three-holed robot arm for cup take-out, gear transmission, an open cam index box, Lester bottom heating, full automatic lubrication and a one-piece frame.
What Is A Medium Speed Paper Cup Forming Machine?
A medium speed paper cup forming machine is an automatic forming machine that turns pre-printed, die-cut paper blanks into finished paper cups in one continuous cycle: the blank is fed, the body is formed and side-sealed, a bottom disc is inserted and heat-sealed, the rim is curled, and finished pieces are counted and stacked.
Unlike semi-automatic equipment, which moves cups between stations by hand, a fully automatic machine such as the LM-C3-110 keeps every station in mechanical phase. That is why it can hold 90-110 pcs/min with a single operator, and why output stays consistent across long shifts for coffee chains, beverage brands and food service distributors.
Feature:
- 2-16 oz cup range – espresso to large takeaway cups
- 90-110 pcs/min – solid medium speed output
- Integral cup mould – accurate cup body forming
- Three-holed robot arm – reliable automatic cup take-out
- Open cam index box – easy to inspect and maintain
- Lester bottom heating – leak-free bottoms
- Optional paper blank feeder – automatic blank feeding, less labour
Application:
The LM-C3-110 is the standard choice for:
- New paper cup factories starting with one line
- Converters adding cups to an existing printing business
- Regional distributors producing for local brands
- Hot drink, cold drink and food container cups
With a lower purchase level than the high speed series and the same 2-16 oz range, it is the usual first machine before upgrading to a high speed line.
Machine Parameters:
| Item | Specification |
| Model | LM-C3-110 |
| Cup Size | 2-16 oz |
| Production Speed | 90-110 pcs/min |
| Raw Paper | 210-350 gsm, single or double PE coated |
| Power Supply | 380 V / 20.6 kW, 50 Hz |
| Air Consumption | 0.4 m³/min |
| Net Weight | 3,500 kg |
| Dimension | L3400 × W1765 × H1600 mm |
How Does The LM-C3-110 Work?
The LM-C3-110 runs a continuous, fully automatic cycle. One operator loads material and monitors the panel; the stations below run in sequence:
- Blank feeding: Pre-printed, die-cut fan-shaped blanks are loaded into the magazine and fed one by one.
- Body forming: The blank wraps around the mandrel and the side seam is sealed with heat.
- Bottom insertion: A bottom disc is punched from the paper roll and placed into the body.
- Bottom sealing: The bottom heater bonds and knurls the base so the container is leak-proof.
- Rim curling: The top rim is rolled outward for a smooth drinking edge and a tight lid fit.
- Counting and stacking: Finished pieces are counted automatically and stacked into sleeves.
Main Machine Features:
- Integral Cup Mould: a one-piece mould holds cup roundness better than assembled tooling, so cups stack cleanly.
- Three-Holed Robot Arm: cups are taken out mechanically instead of by air blow, which reduces rim damage.
- Open Cam Index Box: the cam box can be inspected without a full teardown, cutting service time.
- Lester Bottom Heating: proven bottom sealing on 210-350 gsm board.
- Optional Blank Feeder: automatic blank feeding removes one operator per shift.
What Can The LM-C3-110 Produce?
| Product | Typical Size | End Use |
| Espresso cup | 2-4 oz | Coffee shops, tasting |
| Coffee / tea cup | 7-9 oz | Offices, hot drink chains |
| Cold drink cup | 9-12 oz | Juice, soft drinks |
| Takeaway cup | 12-16 oz | Milk tea, smoothies |
Output Planning: What Can You Expect Per Shift?
Use these numbers to size the machine against your order book:
| Production Window | Running Time | Output At Rated Speed |
| Per hour | 60 min | 6,600 cups |
| Per 10-hour shift | 10 h | 66,000 cups |
| Per day (2 shifts) | 20 h | 132,000 cups |
| Per month (26 days, 2 shifts) | 520 h | 3,432,000 cups |
Figures are calculated at the rated top speed of 90-110 pcs/min and assume steady material supply and normal changeover time. Running smaller sizes or heavier board will sit at the lower end of the range.
Is The LM-C3-110 The Right Machine For Your Factory?
Choose the LM-C3-110 if:
- You need 90-110 pcs/min of steady output and want one machine to cover 2-16 oz.
- You supply coffee chains, beverage brands and food service distributors and need consistent, leak-proof quality on every batch.
- You want a medium speed (LM-C3 / LM-B3) platform with mechanical cam drive rather than chain drive, to keep maintenance predictable.
- You plan to run two shifts and need the machine to hold tolerance over years, not weeks.
Consider a different model if:
- Your orders are still small and seasonal: a lower-output model keeps your capital cost down.
- You only need one fixed size today: a dedicated single-size machine is cheaper than a wide size window.
- Your main problem is defect rate rather than speed: add an inspection machine before buying more forming capacity.
Send us your container sizes, board specification and target output per month. Our engineers will size the right model and confirm the tooling before you order.
Related Lee Machinery Models
FAQs:
What cup sizes does the LM-C3-110 produce?
It produces 2-16 oz paper cups from 210-350 gsm single or double PE coated board.
What is the output of the LM-C3-110?
The machine runs at 90-110 cups per minute, roughly 54,000-66,000 cups in a 10-hour shift.
What does the LM-C3-110 need to run?
It needs 380 V / 20.6 kW power, 0.4 cubic metres per minute of compressed air, floor space of L3400 x W1765 x H1600 mm and 3,500 kg net weight.
What is the lead time and how is the LM-C3-110 shipped?
Standard lead time is 30 to 35 working days after the deposit. The machine is packed in a fumigated export wooden case with moisture protection, shipped by sea as a full container or groupage, and delivered with a full spare parts kit, tooling set and English manuals.
Do you provide installation, training and after-sales service for the LM-C3-110?
Yes. Every machine is tested with your container size before shipment, and we provide installation guidance, operator training videos and remote commissioning support. Engineers can be dispatched for on-site commissioning, and wearing parts are stocked for long-term supply.
Can the LM-C3-110 be customised for special sizes, board or voltage?
Yes. The tooling set is made for your target size range, and the electrical system can be built for the local voltage and frequency of your country. Optional units such as online inspection, paper blank feeders and embossing can be added at the time of order.
